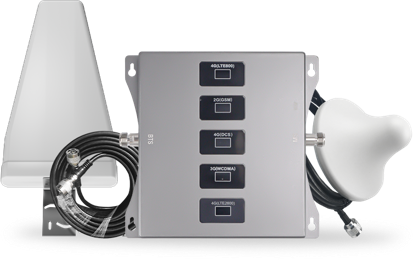

Professional Multi-Band Cellular Signal Booster System - 65dBi Gain, Supports 4-12 Indoor Antennas, Covers 300㎡+ for Office/Building

• 【Wide Carrier & Band Support】: This professional-grade amplifier supports major global cellular frequencies, including 700/800/850/900/1700/1800/1900/2100/2600 MHz for both FDD and TDD LTE/4G/3G/2G networks. It ensures compatibility with carriers worldwide.
• 【High Gain & Powerful Coverage】: Boasts a strong 65-70 dBi system gain and 23 dBm output power to effectively capture weak outdoor signals and rebroadcast them powerfully indoors, covering areas over 300 square meters.
• 【Scalable for Large Spaces】: Designed for commercial applications, this central amplifier unit can drive 4 to 12 indoor panel or ceiling dome antennas, allowing customized coverage for offices, warehouses, hotels, or large buildings.
• 【Professional & Durable Build】: Features a compact, robust metal housing (20.5192cm, 0.95kg) suitable for standard rack mounting or wall mounting in telecom closets. Built for reliable 24/7 operation.
• 【Complete System Solution】: This listing is for the professional amplifier unit (AYS-30-CGDWL). For a complete setup, pair with external donor antennas (Yagi, Panel) and indoor antennas based on your specific building layout and signal source.

3. Detailed Description:

Overview:
The AYS-30-CGDWL is a high-performance, professional mobile signal booster system designed to eliminate poor cellular reception in medium to large commercial spaces. It acts as the central amplifying hub in a professional distributed antenna system (DAS), perfect for offices, conference centers, retail stores, and underground facilities where reliable voice and data connectivity is critical.

Key Features & Specifications:

• Model: AYS-30-CGDWL

• Supported Frequency Bands (MHz):

  • 850 / 900 / 1800 / 2100 / 2600 (FDD-LTE)
  • 850 / 900 / 1800 / 2100 / 2600 (TDD-LTE)
  • 700 / 900 / 1800 / 2100 / 2600
  • 800 / 900 / 1800 / 2100 / 2600
  • 700 / 850 / 1700 / 1900 / 2600
  • 700 / 900 / 1800 / 2100 / 2600
  • Comprehensive coverage ensures support for major carriers like Verizon, AT&T, T-Mobile, and their LTE/4G/3G networks.

• System Gain: 65 - 70 dBi

• Output Power: 23 dBm

• Coverage Area: >300 square meters (configurable with multiple antennas)

• Indoor Antenna Support: Can power 4 to 12 indoor antennas for flexible zone coverage.

• Physical Specifications:

  • Dimensions: 20.5 cm x 19 cm x 2 cm
  • Weight: 0.95 kg
  • Build: Metal enclosure for durability and heat dissipation.

How It Works (System Diagram Concept):

1. Outdoor Donor Antenna: Installed on the roof or outside a window to capture the best available cellular signal.
2. Coaxial Cable: Runs from the outdoor antenna to the AYS-30-CGDWL amplifier unit (this product) located indoors.
3. Amplification: The unit amplifies the weak signal.
4. Indoor Distribution: The boosted signal is distributed via coaxial cables to 4-12 indoor antennas mounted throughout the building.
5. Improved Coverage: Strong, reliable signal is broadcast to all mobile devices within the covered area.

What's Included:

• 1 x AYS-30-CGDWL Professional Signal Amplifier Unit
• Power Adapter
• User Manual

Note:

• This is an FCC/CE compliant amplifier unit. For optimal performance and compliance, professional installation by a qualified technician is recommended to properly place antennas, calculate cable loss, and avoid interference.
• Outdoor Donor Antenna, Indoor Antennas, and Coaxial Cables are sold separately to allow for custom system design based on your specific site survey.
